Hoenle’s medical device adhesives exhibit excellent adhesion to commonly used medical-grade substrates, including polycarbonate, polyimides, polyamides, stainless steel and ceramic. These adhesives are tested for biocompatibility in accordance with ISO 10993-4/-5/-10/-23 and/or USP Class VI protocols.

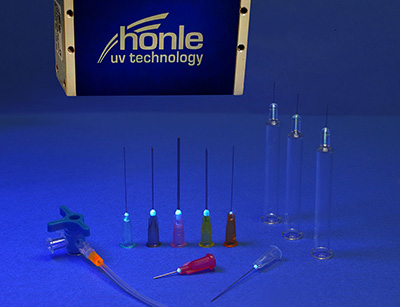

This group of adhesives includes LED curable UV acrylates and UV epoxies which provide the shortest curing cycle times for high volume production. They are ideal for needle/hub assembly, component attachment, and for sealing enclosures. Multiple viscosity ranges are available to provide the best match to component configuration and assembly process.  Fluorescing versions are available to enhance quality control relying on in-line vision systems.

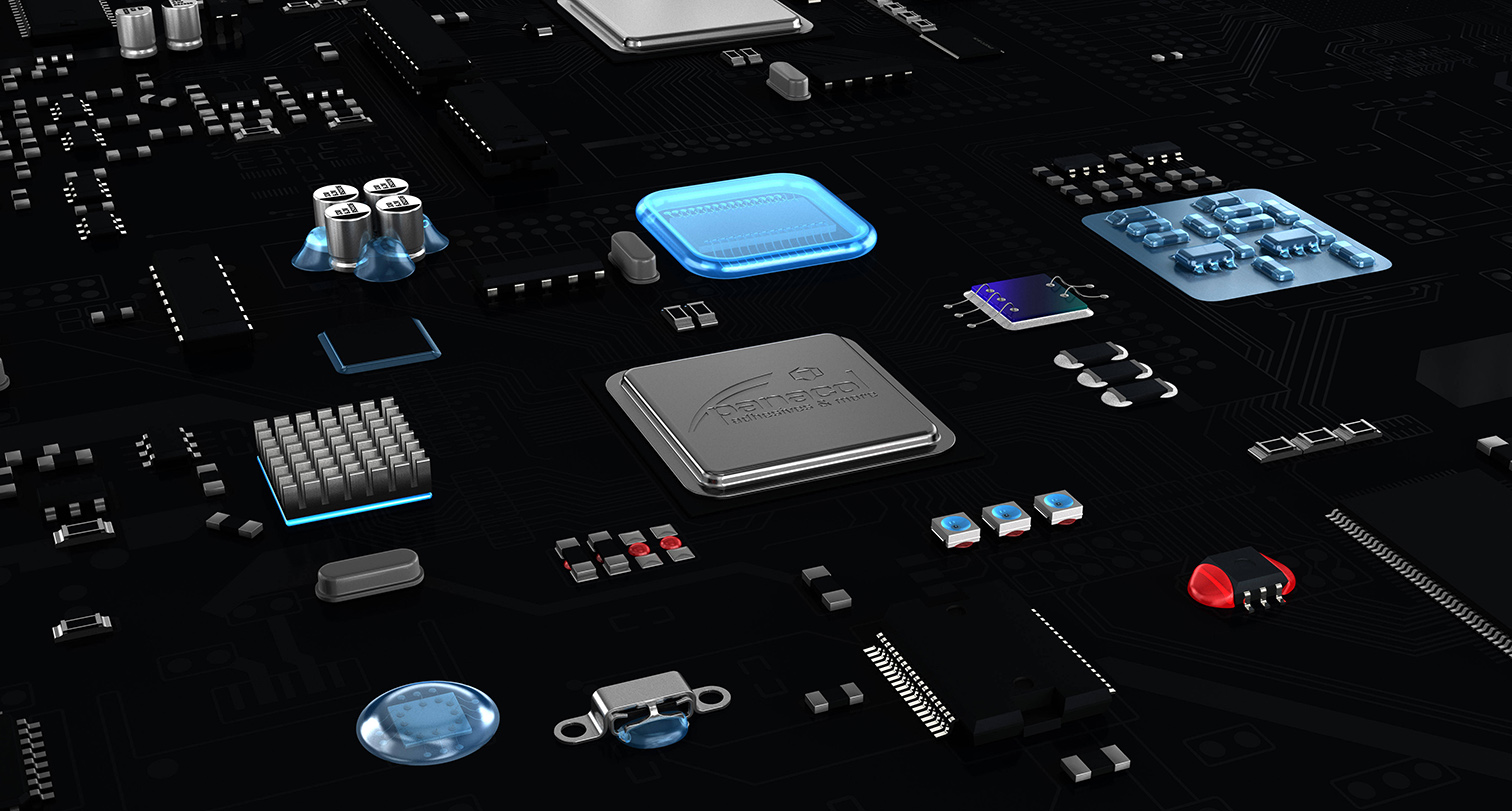

Also included in this group are electrically conductive adhesives and conventional thermosetting epoxies.  They offer connectivity and attachment solutions for PCB and electrical component assembly. Several epoxy selections are available with high ionic purity which is essential to minimize the risk of corrosion on the PCB. Hoenle’s silver-filled electrically conductive adhesives can often replace solder joints or be applied on bendable or flexible wearables.

Accurate and consistent adhesive dispensing is mandatory when assembling medical devices. For the small dispensing volumes, the best choice is the high-precision DosPL DPL2001 micro dispensing head from Scheugenpflug, Part of the Atlas Copco Group. This allows highly accurate application of the adhesives even for the smallest volumes down to the µl range. This allows glob tops to be reliably set to 0.003ml, dispensing accuracies of less than 0.5% to be achieved, and the thinnest lines to be made on the plastic housing with precise start and stop.

The dispensing head works on the principle of volumetric dispensing. A control system reliably detects viscosity fluctuations and ensures consistently high precision of the bonding contour.

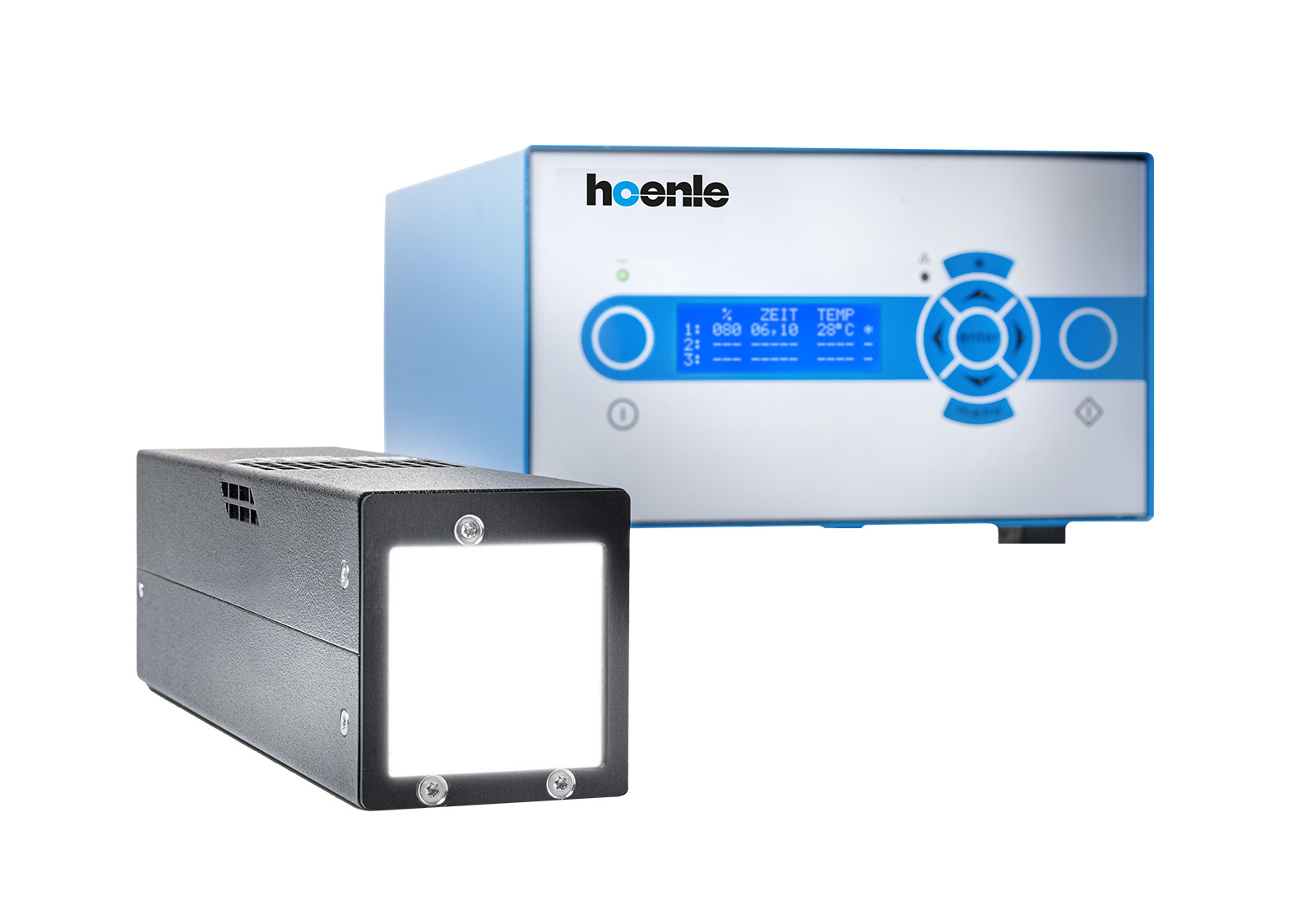

The curing or hardening of Hoenle’s UV acrylate and epoxy adhesives can be achieved in seconds due to their uniquely formulated compositions. LED curing systems from Hoenle enable maximum optimization of the curing process. This ensures the shortest curing cycle time and the highest thruput. In the tested system concept, Hoenle’s LED Spot 40 IC, with a wavelength of 405nm was used. The compact design of this LED head allowed it to be integrated with the DosPL DPL2001 dispensing head into Scheugenpflug’s DispensingCell DC803 multifunction robotic cell. This work cell permits components to remain in one position for both dispensing and UV curing processes. Parts handling is minimized, along with the risks of  component movement, contamination, and adhesive migration. This integrated system concept ensures the adhesive bonding process is performed to the highest quality standards with the greatest efficiency. Whether batch production or continuous flow, integrated adhesive bonding systems from Hoenle and Atlas Copco meet the demanding production requirements for medical wearables.

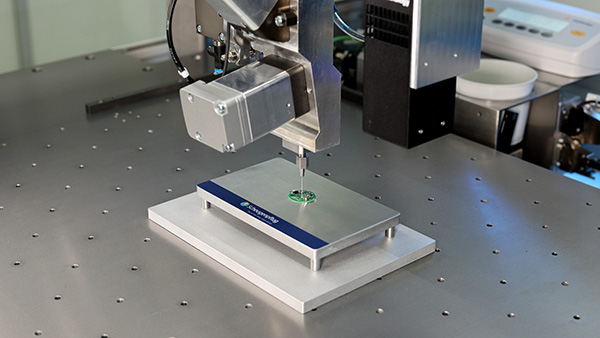

Watch our video

Downloads

Medical Grade Adhesives (pdf)

LED Spot 40 (pdf)

Do you have any questions or need support for our bonding solutions? We are happy to help you.
